RINGSCAFF system

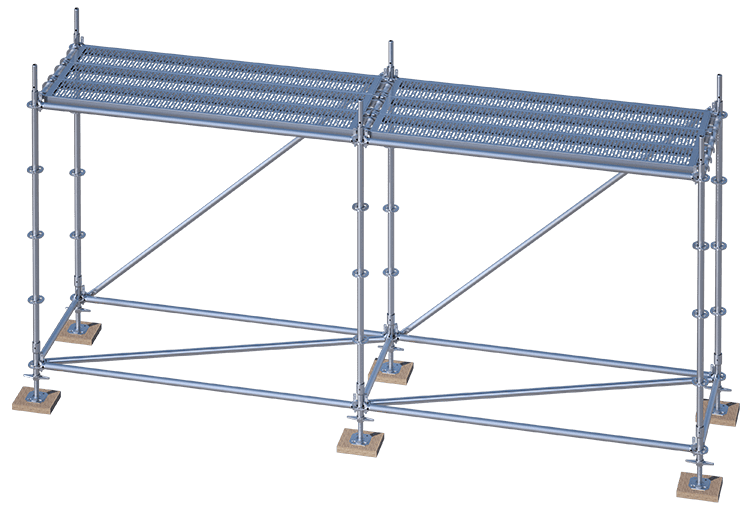

Modular scaffold system RINGSCAFF

Scafom-rux modular scaffolding system RINGSCAFF is one of the most recognised scaffolding systems worldwide. RINGSCAFF is extraordinary versatile and exceptionally stable - a fact that has been audited and certified by several experts and institutions.

Moreover, the RINGSCAFF modular scaffold is compatible with other conventional, modular scaffolding systems and has official approvals for  mixing. It guarantees international standards  of functionality, adaptability, durability and safety.

Characteristics

Internationally certified

The Ringscaff system is used worldwide and has been approved in many different countries. In Europe the system has following approvals:

  • (D):German Institute for Building Technology: DIBT
  • (S):Swedish Institute: SP
  • (E):Spanish institute: AENOR

Find more product documentation such as: Brochures, Certifications, Product Assortment Catalogues, Video Animations, Erection Manuals in the Download center.



Product features

  • Smart assembly technique
  • Few loose components with unique shape
  • Fast assembly and dismantling
  • Optimum use of storage and transport capacity
  • High structural stability ; High safety standards
  • Indestructible components
  • Stable in value
  • Full traceability







Few basic elements, a solid foundation

  1. Base jack
  2. Base collar
  3. Standard
  4. Ledger / transom
  5. Vertical brace
  6. Side bracket
  7. Side protection toeboard
  8. Steel decks
  9. Anchor
  10. Couplers
  11. Stairs

Smart Ringscaff Solutions

The scafom-rux Fixed Corner Deck brings the scaffolding deck area closer to the building. Without any steps or tripping edges, worksite safety is significantly increased. This deck is fabricated from hot-dip galvanised steel which greatly reduces the risk of fire hazard. Also watch our animated video. Download leaflet.

The Scafom-rux Flexible Corner Deck is fabricated as a galvanised steel diamond plate and offers a stepless adjustable corner solution up to 45°. The cleverly designed flex corner bracket, made of a rugged, durable coupler and a rosette ensures correct and easy erection. Also watch our animated video. Download leaflet.



Heavy Duty Jack adds shoring capability to the Ringscaff modular scaffolding system by Scafom-rux. By clustering four RINGSCAFF® standards, workloads can be increased significantly. Leg loads up to 60,700 lbs can be safely and routinely achieved. Also watch our animated video. Download leaflet.



Because safety is a priority, RINGSCAFF® offers premium benefits

Worksite safety is always a major concern. The simplicity and design logic of the RINGSCAFF® system minimises errors during rapid assembly and disassembly. Economies begin, however, well before delivery to the site, thanks to the indestructible quality of the material, long service life, very low maintenance, efficiency in storage and ease of transport.

Specifications

Application

Industrial scaffolding, on/off-shore sector, shipbuilding, facade scaffolding, support structures


Load bearing capacity

Loading of working floors up to 125 lbs/ft2


Certifications

Internationally certified to a.o. German approval Z-8.22-869


Mixed System Approval

Z-8.22-901 ............ approval 07 dimension

Z-8.22-911 ............. approval 09 dimension
